Junction Box
SELECT VARIANT
Junction Box
High-performance PV junction box designed for maximum efficiency, durability, and seamless solar panel integration.
TECHNICAL SPECIFICATIONS
Rated Voltage
1500 Volt DC
Rated Impulse Voltage
16KV
Max Working Voltage
100V
Reverse Current
upto 50A
Protection Class
Class II (Application Class A)
Protection Degree
IP68
Pollution Degree
1
RTI of housing material
125 degree Celsius
Flammability Class
UL-94 V0, 5VA
Contact Resistance
≤3mΩ
Temperature Range
-40 to +85 degree Celsius
Cable / OD
62930 IEC 131, 1*4mm^2, ≥15KV DC / 6.2mm² ±0.1mm
Diode Rating
If=40A/VRRM=45V for AXJB1.25
If=50A/VRRM=45V for AXJB1.30
If=60A/VRRM=45V for AXJB1.35
Width of Busbar
Max 8.5mm
Contact Material
Copper alloy, Tin plated
Bonding Material
Silicon Glue/Sealant
PV Connectors
1500V DC, 40A, IEC 62852
Standard
IEC 62790:2020

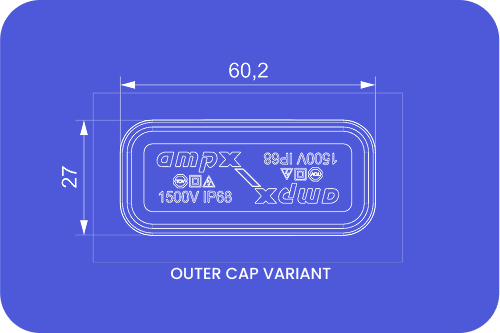

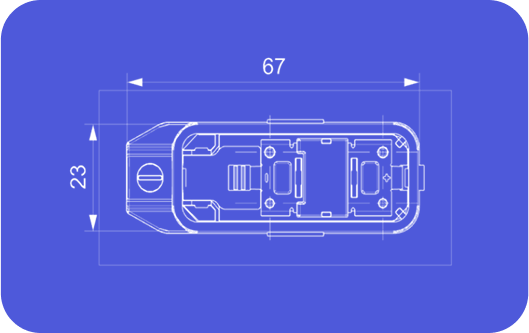

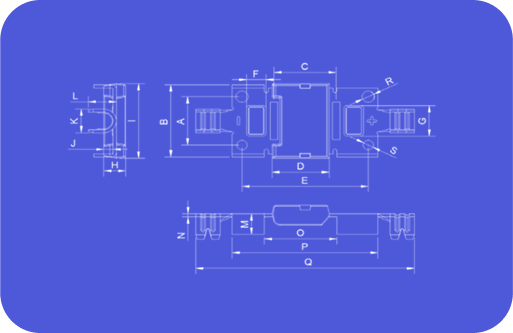

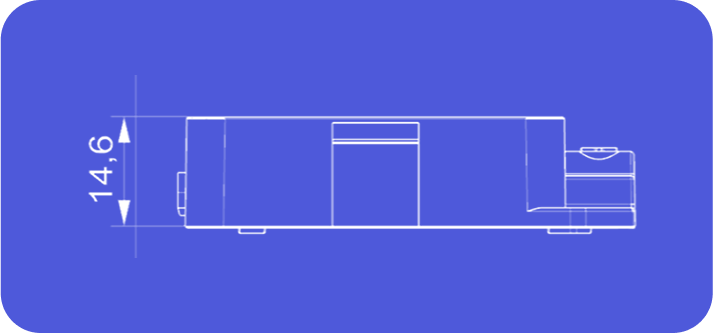

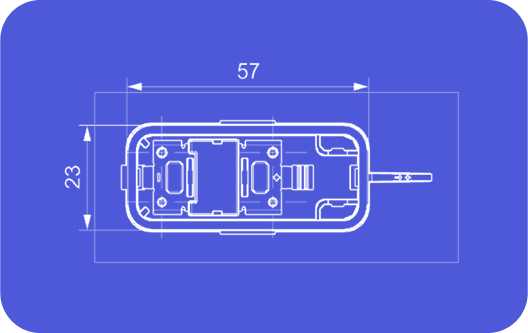

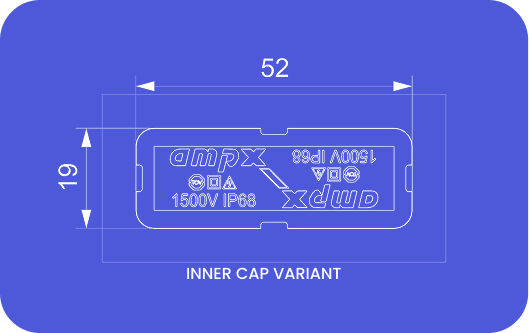

Mechanical Drawings
